stainless steel coconut oil bottle filling machine


Introduction:

1)This type filling machine widely used in chemical industry, food, cosmetic, medicine, pesticide, lubricating oil industries such as paste, liquid filling.
2)Semi automatic type, rational design, small and exquisite,easy operation.
3)Made of 304 stainless steel of the contacting part, conformed to rules of GMP.
4)Both the filling quantity and filling rate can be arbitrarily adjusted with high accuracy.
5)It is consists of magnetic air cylinder, hydro cylinder, Electrical Controls component, simple structure, small occupy, easy to operate.
6)It can fill oil quantitatively, the air cylinder drives piston of the oil cylinder and moves repetitively, it has advantage of high-precision adjustment.



Equipment instruction:

1)Actuator components(cylinders) adopt brand of components (FESTO AirTac SNS), material contact parts are made of 316L and 304 stainless steel, in conformity with GMP, non-metal parts are made of high standard materials. Sealing rings is use of the silica gel sealing ring or PTFE sealing ring; silica gel sealing rings are of high temperature resistant, good sealing; PTFE sealing ring are durable against wear, corrosion and high temperature.
2)The entire machine control and operative parts all uses the pneumatic components, it uses compressed air as power source, without electricity. The machine is running without collision and hard friction, so it is suitable for the application of explosion-proof environment. It has a high security.
3)The equipment adopts the fixed volume type metering mode and the piston push-pull rod structure, the use of precise switch control and positioning slide block, and the check valve is fast and precise air-operated valve, so the equipment have high precision and small filling error (≤±0.5%).

Product Parameters:

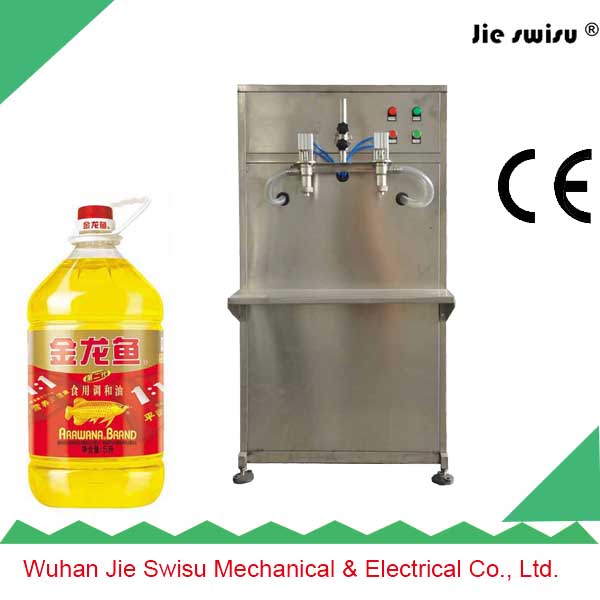

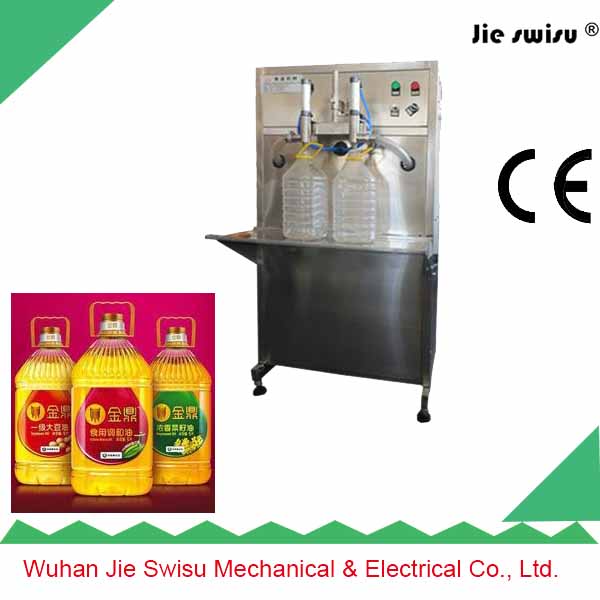

stainless steel coconut oil bottle filling machine Images
